Lightweight and High Refresh Rate
The Giant series has a great performance. High contrast 5000:1; High refresh rate 3840Hz; 160° wide viewing angle. Die cast aluminum cabinet with weight of 7.5kg/cabinet and thickness of 80mm. Easy to operate, transport and assembling, saving time and labor cost.
Various shapes
Seamless 90 Degree Angle Installation.Corner cabinet can be 45 degree edge, to create seamless 90 degree corner. Curved with every 2.5° between -10°and 10°, which can make convex and concave. The shape of the screen can be rectangular or irregular according to the use environment.
Removable Power Box
Removable Power Box with pin connection design, better image quality and easy for maintenance. It uses LED corner protection design, each corner has four corners, can effectively protect the cabinet.

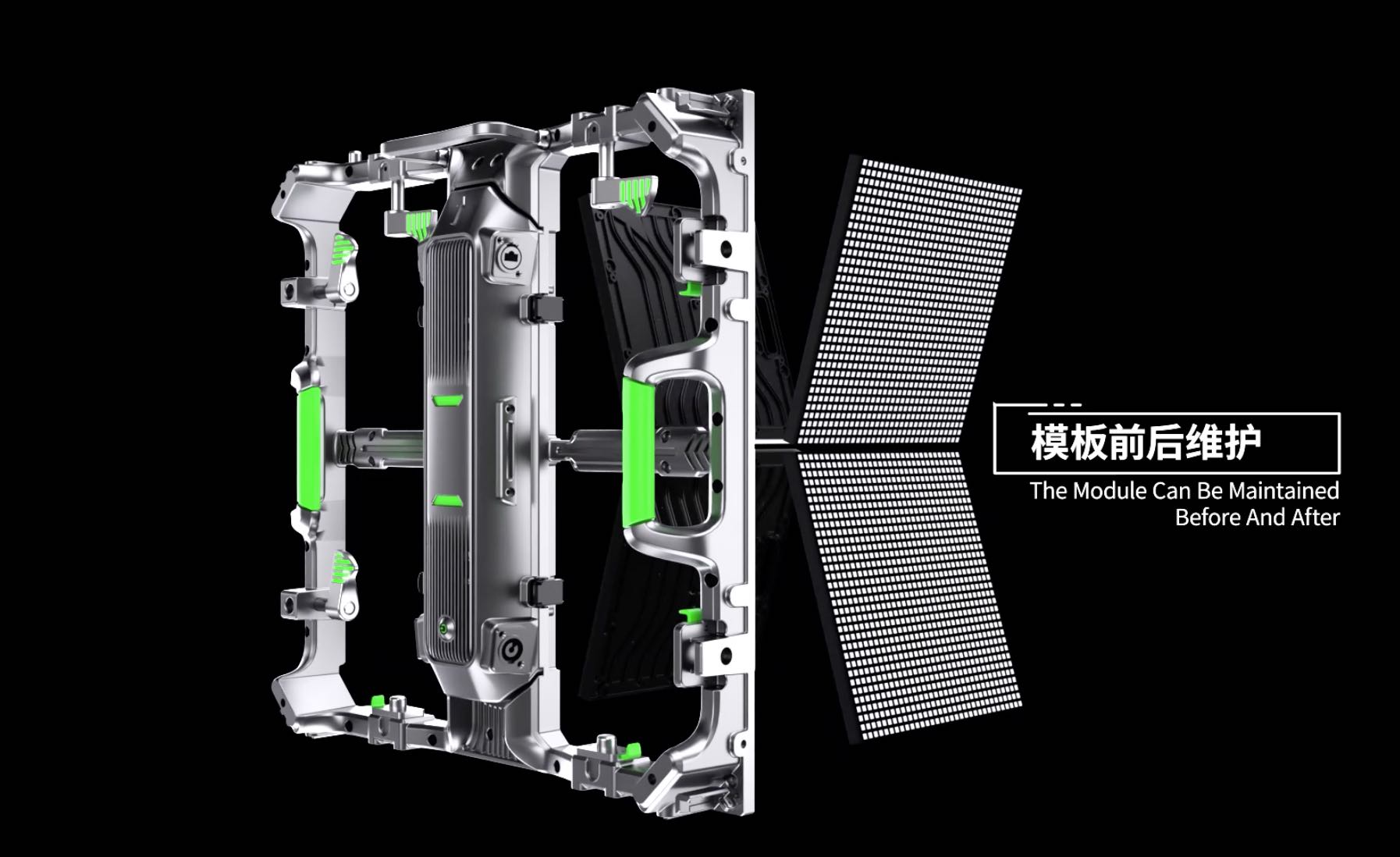

Front&Rear Service
Giant Series Rental LED Display is dual maintenance product, the LED panels are magnetic and can be removed by tools from the front side in 5 seconds. Easy and convenient, save your cost and labor.
CE, ROHO, FCC Certification
Product quality is reliable, CE, ROHO, FCC certification available.High-precision LED display, image and video display seamlessly stitched together to give you the perfect visual experience you want. The picture quality brings a new sensory experience to the audience.

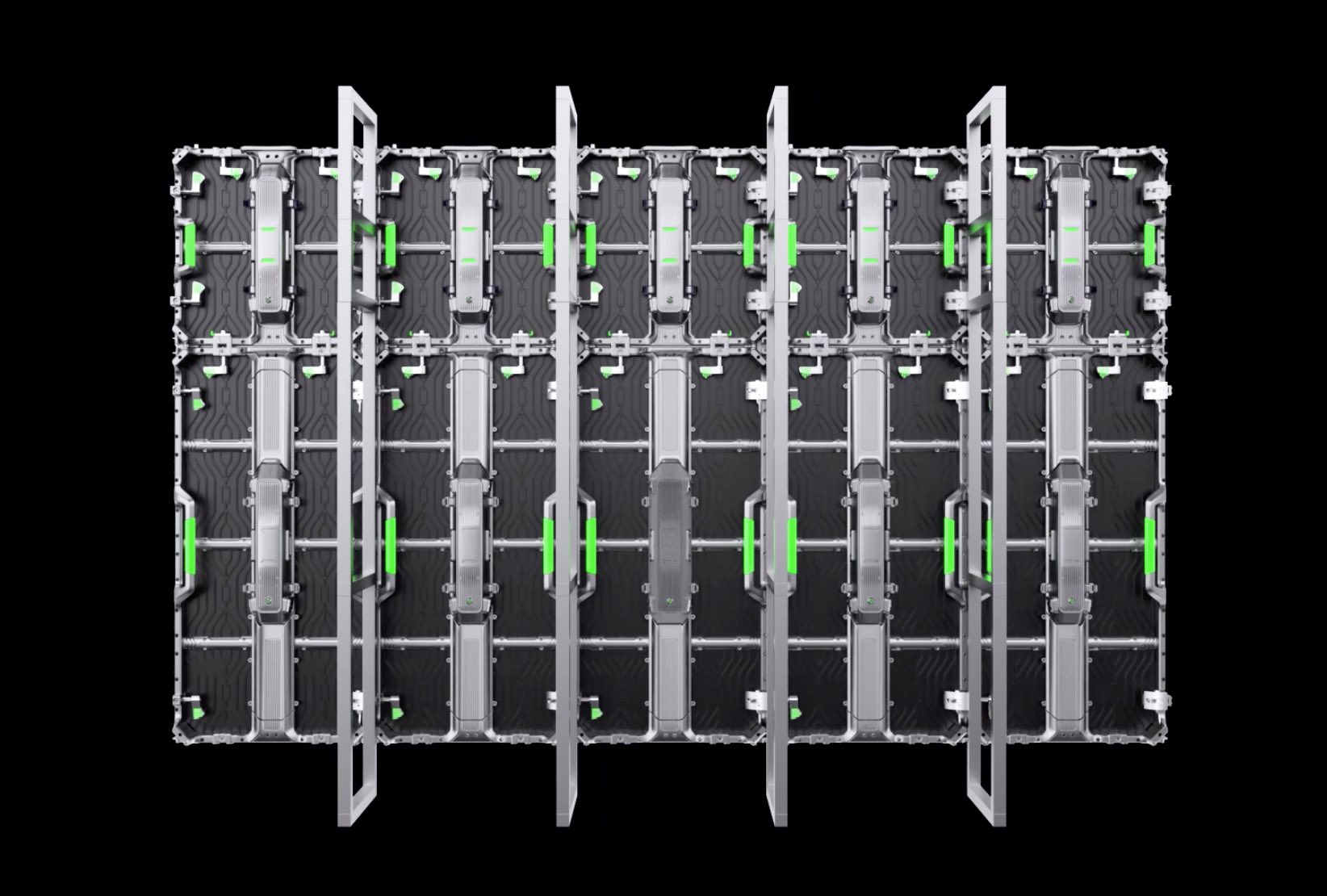

Customized Size
500x500mm and 500x1000mm cabinet can mix assembling, more flexible to create the exact size customer want.
| | Giant 2.9mm | Giant 3.91mm | Giant 4.81mm |
| Pixel Pitch | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 86,016 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions(W x H) (mm) | 250 x 500 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 500 x 1000 x 80 | 500 x 500 x 80 500 x 1000 x 80 | 500 x 500 x 80 500 x 1000 x 80 |
| Modules Per Cabinet (W x H) | 1 x 2 | 1 x 2 | 1 x 2 |
| Module Resolution | 168 x 84 | 128 x 64 | 104 x 52 |
| Cabinet Resolution | 168 x 168 | 128 x 128 | 104 x 104 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 7.5kg | 7.5kg | 7.5kg |
| Digital Processing | 16bit | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 200 W /Sqm | 200 W /panel | 200 W /panel |
| Max Power Consumption | 650 W /Sqm | 650 W /panel | 650 W /panel |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front | Front |
| IP Rating (Front/Rear) | IP 68 | IP 68 | IP 68 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/21 Scan | 1/16 Scan | 1/13 Scan |
