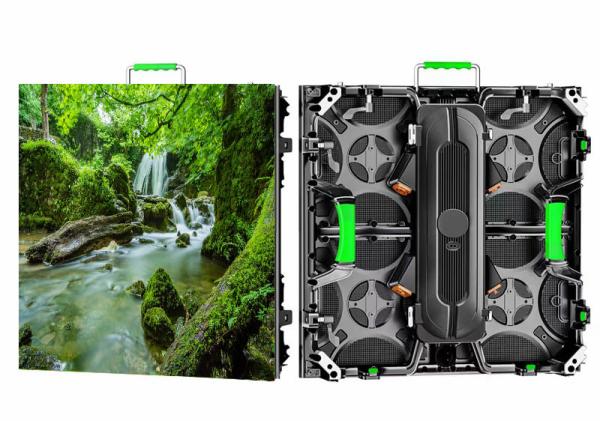

Outdoor P3.91 500x500mm Rental LED Screen With 5000nits brightness CE, ROHS, FCC Certified
Application of Outdoor Rental LED Screen 500x500
In terms of product performance, the full flip cob display technology, advanced material and process design (Ubp extreme black surface treatment process) pioneered by Sida are adopted to double the display effect (pixel multiplication technology), higher color purity (advanced driving technology with low brightness and high gray), wider color range (dci-p3), and lifelike details (3D-2D random conversion). It is more stable and reliable. It not only has the super protection grade of IP65, but also has the characteristics of scratch resistance, wear resistance and corrosion resistance. It can also meet the use requirements in various special environments.
It is worth mentioning that, as a high-end display product created by HIDA for the ultra-high definition display field, the Phantom Crystal product also has a gratifying performance in terms of cost performance. The core patented pixel multiplication technology of the product can effectively reduce the raw material and process costs of various production links. Under the same resolution, the Phantom Crystal product is more competitive than the conventional display product
Specification Of Outdoor Rental LED Screen
| | AT 2.9 | AT 3.9 | AT 4.8 |
| Pixel Pitch | 2.976mm | 3.91mm | 4.81mm |
| Pixel Configuration | SMD1415 | SMD1921 | SMD1921 |
| Pixel Density | 86,016 pixels/m2 | 65,536 pixels/m2 | 43,264 pixels/m2 |
| Module Dimensions(W x H) (mm) | 250 x 500 | 250 x 250 | 250 x 250 |
| Panel Dimensions (mm) | 500 x 500 x 80 500 x 1000 x 80 | 500 x 500 x 80 500 x 1000 x 80 | 500 x 500 x 80 500 x 1000 x 80 |
| Modules Per Cabinet (W x H) | 1 x 2 | 1 x 2 | 1 x 2 |
| Module Resolution | 168 x 84 | 128 x 64 | 104 x 52 |
| Cabinet Resolution | 168 x 168 | 128 x 128 | 104 x 104 |
| Panel Material | Die Cast Aluminum | Die Cast Aluminum | Die Cast Aluminum |
| Weight per Cabinet | 7.5kg | 7.5kg | 7.5kg |
| Digital Processing | 16bit | 16bit | 16bit |
| Colours | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 5,000 : 1 | 5,000 : 1 | 5,000 : 1 |
| Average Power Consumption | 200 W /Sqm | 200 W /panel | 200 W /panel |
| Max Power Consumption | 650 W /Sqm | 650 W /panel | 650 W /panel |
| Brightness | >5,000 nits | >5,000 nits | >5,000 nits |
| Refresh Rate | >3,840Hz | >3,840 Hz | >3,840 Hz |
| Vertical Viewing Angle | 160° | 160° | 160° |
| Horizontal Viewing Angle | 140° | 140° | 140° |
| Expected Lifetime | 100,000 Hrs | 100,000 Hrs | 100,000 Hrs |
| Servicing | Front | Front | Front |
| IP Rating (Front/Rear) | IP 68 | IP 68 | IP 68 |
| Operating Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Storage Temp/Humidity | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% | -20ºC - 50ºC / 10% - 90% |
| Scan Method | 1/21 Scan | 1/16 Scan | 1/13 Scan |
Feature Of Outdoor 500x500 Rental LED Screen
1. Integrated compact design, cableless design, fast replacement of power box.
2. With fast lock design, 500x500mm and 500x1000mm cabinet can be easily spclied up and down, and mixed use.
3. Reinforced connection design, all connection part is strong and reliable for all kinds of application.
4. High precision, with high end CNC machine, the allowance is as small as within 0.1mm, which keeps the screen in perfect flat surface and create smooth image performance.
5. Packing, with strong and high end flight cases, 8 in 1 or 6 in 1 as customer demand.
Our Services
1. 15 Years professional led display manufacturer
2. Short delivery time: 5-15 working days, adjustable according to customer request
3. Wholesale price
4. OEM and ODM service
5. CE, ROHS, FCC, ETL, TUV certified supplier
FAQ
Q1. How does the semi-auto corner protector work?
A: Gently push the button, the corner protector will release and cover the corner area.
Q2. What installation options do we have?
A: Either stacking on the ground or hanging is supported.
Q3. Do you have any MOQ limit for led screen orders?
A: Low MOQ, modules or complete screen orders are all welcome.
Q4. What's the shipping method?
A: Airfreight, sea and train transport according to different regions.
Q5. What's the payment method?
A: Mostly we accept telegraphic transfer, 50% before production and 50% balance before shipment.
Q6. How do you control the production quality?
A: We manage quality starting from incoming material, all leds, ICs and PSU are pre-inspected then go to the production line.
The modules and complete screen will have at least 72 hours aging test, to make sure of stable quality and performance.
Q7: How does warranty work?
A: We provide 1-3 years warranty for different products. Free Repair or Exchange of Defective Parts with One-way Shipping
