BMW Dealer Center with TBC E series Outdoor P8mm Durable Quality High Brightness

Product Categories

Topbright Creation Limited

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : TBC

Model Number : P8

Certification : CE-EMC, CE-LVD, RoHS, ETL, FCC

Place of Origin : China

Packaging Details : Wooden box

Location : England

Product : Outdoor led billboard

Pixel Pitch : 10mm

Dimension : 960x960mm

Thickness : 100mm

Material : Aluminum

Price : Negotiable

Contact Now

BMW Dealer Center with TBC E series Outdoor P8mm Durable Quality High Brightness

Introduction:

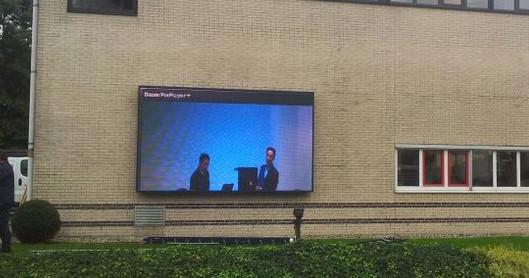

Outdoor P8 5x3m LED display on the exterior wall of BMW dealer center.

Tailor your message to different audiences and times
Black SMD technology create high impact visual experience for your advertisements
Provide advertising to multiple clients per day
Remotely control and monitor the screen
Maximum screen brightness with low power consumption

Features and Advantages:

High Visibility

Black SMD Design

Durable Cabinet Design

Parameters

Brightness	nits	6000
Color temperature	deg.k	3200 ~ 9300
Viewing angle - Horizontal	deg.	140(+70/-70)
Viewing angle - Vertical	deg.	140(+70/-70)
Cabinet weight	kg	46
Cabinet width	mm	960
Cabinet height	mm	960
Cabinet depth	mm	140
Cabinet area	sq. m.	0.92
Cabinet material		Cold Steel
Aspect ratio		1:1
Ingress protection (Front/Rear)	IP	IP65/IP43
Operating temperature range	deg. C	- 20 to 50
Operating humidity range	HR	10％ to 90％
Pixel type and configuration	R/G/B	SMD 3in1
Pixel pitch	mm	8
Pixel matrix per cabinet		120x120
Pixels per cabinet		14,400
Lines per meter		100
Pixels per sq. meter		10000
LEDs per sq. meter		10000
Recommended minimum viewing distance	m	10
Colours		281trillion
Gray scale	Levels	65536 levels per colour
Brightness control	Levels	100
Digital processing	bit	16
Frame rate	Hertz	60
Display refresh rate	Hertz	1920
Input voltage	VAC	110/240
Input power frequency	Hertz	50/60
Input power (max/avg)	Watts per sq.m	1000/350
MTBF	Hours	≥10000
Lifetime (50%Brightness)	Hours	≥100000
Module brightness uniformity		＜5％
Blind spot rate		＜0.0001
Earth leakage current	mA	＜2
Red wavelength	nm	623
Green wavelength	nm	525
Blue wavelength	nm	470
Panel input format (with video processor)		VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV
Data interconnection		CAT6 cable/Fiber
Operating system		Windows(XP/Vista/7/8/10)
Control distance		Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers.

Parameters:
